Door – Window Sensor

Door – Window Sensor

The ECO-SENS range consists of different types and models of sensors for optimising the electrical consumption of the rooms, achieving savings of up to 60% in rooms equipped with ECO-SENS sensors.

The door and window sensors inform the economiser if the windows in the room and the access door are open or closed. Depending on the situation of the doors and windows, the economiser manages the electrical devices of the room to minimise energy consumption.

Request a quote

Window Mode: Instructs the economiser to stop the configured relay when the window remains open for more than a certain period of time. It is usually programmed to act on the relay that manages the air conditioning.

Door mode: Manages the configured relay of the economiser when the door is opened and no motion is detected in the room; prevents the configured relay from turning off when the room is occupied and the motion sensor does not detect anyone.

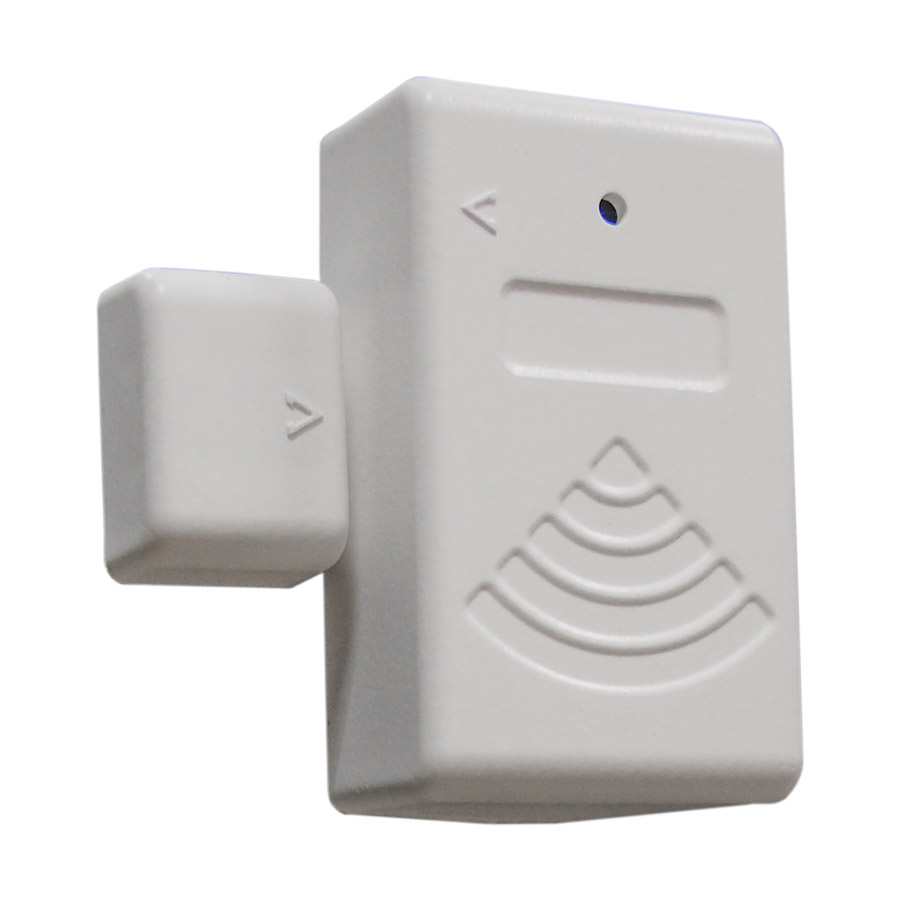

Overlaid Sensor

Simple and quick installation on doors or windows and their frames; operative in a few minutes.

Features

  • Magnetic detector.
  • Possibility of several sensors per room.
  • 10m coverage to the Wireless economiser.
  • IEEE802.15.4 wireless communication.
  • Dimensions 44 x 27mm + 18 x 13mm.
  • Power supply with 3V CR2032 lithium battery.
  • Autonomy of 2 years.
  • LED indicator.

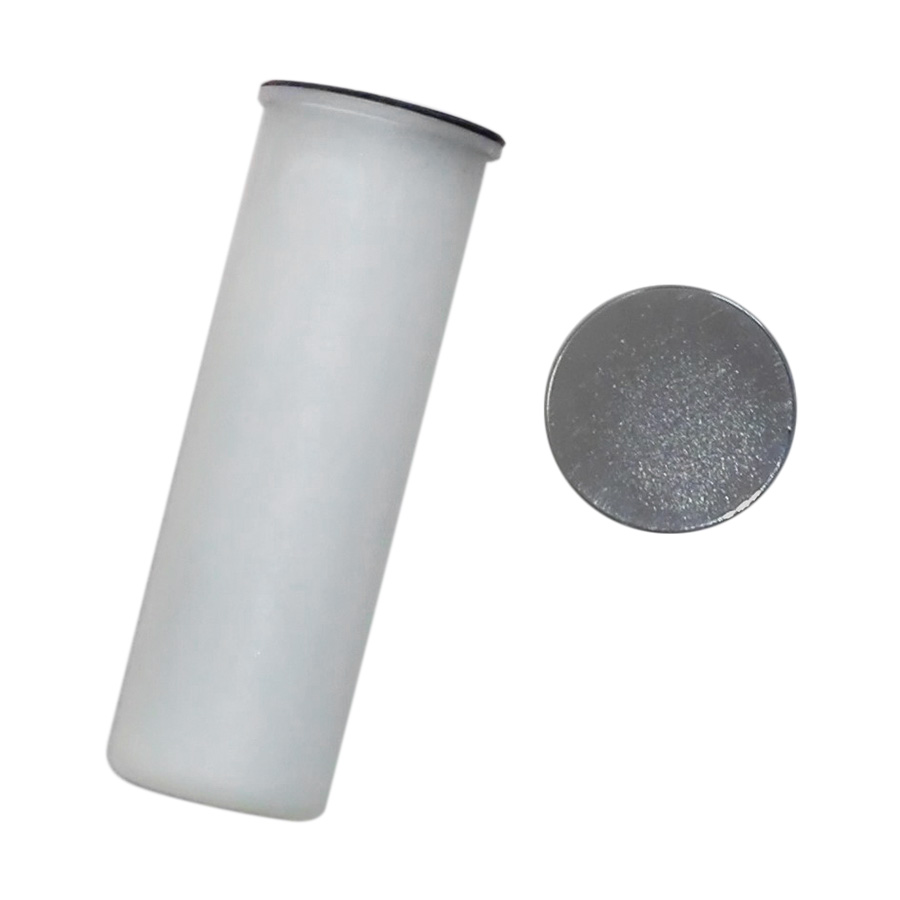

Built-In Sensor

Designed for installing inside non-metallic doors and windows; this sensor goes completely unnoticed.

Features

  • Magnetic detector.
  • Possibility of several sensors per room.
  • 10m coverage to the Wireless economiser.
  • IEEE802.15.4 wireless communication.
  • Dimensions sensor 20mm Ø x 55.5mm and magnet 20mm Ø x 1mm.
  • Power supply with alkaline battery 1.5V LR 03.
  • 4-year autonomy.
  • LED indicator.
